With the introduction of FFmpeg 8.1 a OCIO filter has been added. This allows you to convert from EXR files directly to encoded media using an OCIO filter to convert the colorspace correctly without needing an intermediate file.

If you are encoding to Y’CbCr, you should perform the OCIO conversion in an RGB colorspace first, and then convert to Y’CbCr with zscale, in the same way as the other pages on this site (see zscale Conversion):

ocio=...:format=rgb48,format=rgb48le,zscale=matrix=709:range=limited:filter=lanczos,setparams=color_primaries=bt709:color_trc=iec61966-2-1
  • setparams is essential here. The OCIO filter changes the pixels but not the frame’s color tags, and FFmpeg 9.0 tags EXR frames as linear. Without setparams, the file is labelled with a linear transfer function and no primaries, whatever display transform you applied. The earlier examples on this page did exactly that.
  • zscale rather than scale. libswscale puts white about 3 code values (10-bit) too high, as on the other pages; see Color range accuracy.
  • format=rgb48le between the two filters works around a crash in the FFmpeg 9.0 release, which segfaults when zscale follows the OCIO filter directly. It changes nothing (rgb48 already is rgb48le), and builds with the format negotiation rework (our 8.1 build, and 9.1-dev) do not need it; see Building ffmpeg with OCIO support.

Measured on 9.0 against the OCIO filter’s own RGB output (ACES sRGB display transform, H.264 4:2:0 10-bit, -crf 18): the earlier scale version was white +3.0, mean error 1.7, tagged linear transfer with no colr atom; the zscale version is white 0.0, mean error 1.3, tagged BT.709/sRGB (colr nclc 1/13/1).

Example Usage

Using OCIO-Display

This example is encoding to a 10-bit H.264 quicktime.

ffmpeg -y  -framerate 24 -start_number <STARTFRAME> -i SOURCEFRAMES.%05d.exr \
   -c:v libx264 -pix_fmt yuv420p10le -crf 18 -preset slow \
   -vf "ocio=input=ACEScg:display=sRGB - Display:view=ACES 1.0 - SDR Video:format=rgb48,format=rgb48le,zscale=matrix=709:range=limited:filter=lanczos,setparams=color_primaries=bt709:color_trc=iec61966-2-1" \
   OUTPUTFILE.mov

Using an output colorspace (in this case ACEScct)

This is using the older style colorspace conversion where you are specifying an output colorspace (in this case ACEScct).

ffmpeg -y  -framerate 24 -start_number <STARTFRAME> -i SOURCEFRAMES.%05d.exr \
   -c:v libx264 -pix_fmt yuv420p10le -crf 18 -preset slow \
   -vf "ocio=input=ACEScg:output=ACEScct:format=rgb48,format=rgb48le,zscale=matrix=709:range=limited:filter=lanczos,setparams=color_primaries=unknown:color_trc=unknown" \
   OUTPUTFILE.mov

ACEScct has no standard primaries or transfer code, so this leaves them unspecified rather than letting the EXR’s linear tag through. Anything that reads the file needs to be told it is ACEScct.

The format parameter that’s part of the OCIO filter allows you to specify an output pixel_format that OCIO will be converting to. This has to be an RGB colorspace since OCIO doesn’t know how to convert to Y’CbCr. If you do not supply the format, the output will match the input with the exception of half-floats which will be converted to full floats (due to poor support for half-floats).

Note, you can also specify the OCIO config file as a “config” parameter; otherwise, it will default to the OCIO environment variable.

Creating an HDR movie from ACEScg

This example demonstrates how to convert an ACEScg EXR image sequence to a 10-bit HDR10 (PQ) QuickTime movie. For HDR codec settings and metadata, see HDR Encoding.

ffmpeg -y -framerate 24 -start_number <STARTFRAME> -i SOURCEFRAMES.%04d.exr -c:v libx265 -pix_fmt yuv422p10le -threads 0 -vf "ocio=input=ACEScg:display=Rec.2100-PQ - Display:view=ACES 1.1 - HDR Video (1000 nits & Rec.2020 lim):format=rgb48,format=rgb48le,zscale=matrix=2020_ncl:range=limited:filter=lanczos,setparams=color_primaries=bt2020:color_trc=smpte2084" -color_range tv -color_trc smpte2084 -color_primaries bt2020 -colorspace bt2020nc -tag:v hvc1  \
    -x265-params "colorprim=bt2020:transfer=smpte2084:colormatrix=bt2020nc:range=limited:master-display=G(13250,34500)B(7500,3000)R(34000,16000)WP(15635,16450)L(10000000,1):max-cll=1000,400" OUTPUTFILE.mov

Converting an HDR movie back to ACEScg EXRs

To demonstrate converting from an HDR movie back to ACEScg, we first create a high-quality (lossless 12-bit 4:4:4) HDR movie:

ffmpeg -y -framerate 24 -start_number 6100 -i <INPUTFILE>.%05d.exr -c:v libx265 -pix_fmt yuv444p12le -vf "ocio=input=ACEScg:display=Rec.2100-PQ - Display:view=ACES 1.1 - HDR Video (1000 nits & Rec.2020 lim):format=rgb48,format=rgb48le,zscale=matrix=2020_ncl:range=limited:filter=lanczos,setparams=color_primaries=bt2020:color_trc=smpte2084" -color_range tv -color_trc smpte2084 -color_primaries bt2020 -colorspace bt2020nc -tag:v hvc1      -x265-params "lossless=1:colorprim=bt2020:transfer=smpte2084:colormatrix=bt2020nc:range=limited:master-display=G(13250,34500)B(7500,3000)R(34000,16000)WP(15635,16450)L(10000000,1):max-cll=1000,400" sparks_lossless_h265.mov

Note this is both 12-bit 444 and lossless, to make the comparison a little easier to rule out any encoding artifacts.

Then we can convert it back to EXR’s:

ffmpeg -y -i sparks_lossless_h265.mov -threads 0 -vf "zscale=filter=lanczos,format=gbrpf32le,ocio=input=ACEScg:display=Rec.2100-PQ - Display:view=ACES 1.1 - HDR Video (1000 nits & Rec.2020 lim):inverse=1:format=gbrpf32le"  testoutput/testoutput.%04d.exr

zscale converts the Y’CbCr to floating point RGB before the OCIO filter, reading the matrix and range from the file’s tags. The earlier version of this command left that conversion to libswscale and put scale after the OCIO filter, where it clamps the scene-linear values. Converting a lossless 12-bit PQ movie of an ACEScg frame back (9.0 and 9.1-dev), the median error against the original EXR went from 1.0% to 0.12%, and the brightest value kept from 299 to 707 (the source peaks at 2100; the 1000 nit display transform cannot carry all of it).

So while this will limit the max luminance to 1000 nits, it will give you a wide gamut with a higher dynamic range that you can convert back into a linear range which will be hugely superior to rec709 or Display P3. Obviously this is not as good as using the original EXR files, but it is certainly an improvement over rec709, giving you the ability to change the exposure.

If your viewer supported HDR, this shows that you could internally convert it to ACEScg, so that any test color correction you might be doing in the viewer would be fairly representative of what it would be like if you were reading from an openEXR frame.

Converting from HDR (Rec.2100) image sequence to ACEScg

If you have an image sequence that is already in an HDR space (like Rec.2100 PQ) and want to convert it to ACEScg EXRs, you can use the inverse=1 parameter with the appropriate display and view:

ffmpeg -y -i INPUT_REC2100.%04d.exr -vf "ocio=input=ACEScg:display=Rec.2100-PQ - Display:view=ACES 1.1 - HDR Video (1000 nits & Rec.2020 lim):inverse=1:format=gbrpf32le" testoutput_acescg.%04d.exr

Filter Arguments

Option Description
config By default the filter will use the OCIO config defined by the OCIO environment variable, but this parameter allows you to explicitly specify its location. If you are getting started, you can use config=ocio://studio-config-v1.0.0_aces-v1.3_ocio-v2.1 which specifies one of the built in defaults.
input Set the input colorspace.
output Set the output colorspace.
display Set the display colorspace, used in combination with view.
view Set the view colorspace, used in combination with display.
inverse When used in combination with display and view, this inverts the transform, so going from a display/view to the “input colorspace”.
format Allow you to specify the output pix_fmt of the OCIO filter. This has to be a RGB colorspace, so you really are limited to rgb24, rgba, rgb48, rgba48, gbrp10, gbrp12, gbrpf32le, gbrapf32le, for most encoding we would recommend rgb48. By default this is the pix_fmt of the input with the exception of gbrpf16le which we automatically convert to a 32bit version (half float is not fully supported by ffmpeg, swscale in particular). Note that choosing an integer format such as rgb48 also clamps the result to the 0.0 - 1.0 range. That is usually what you want for a display-referred output, and it matches what Nuke does, but it is a real choice: a display transform can emit values outside that range, and leaving format unset carries them through to the Y’CbCr conversion where they become illegal levels.
context_params Allow you to specify additional context parameters for the OCIO filter. This is a list of key=value pairs, separated by colons.

Working with EXR files and FFmpeg

FFmpeg has its own EXR reader and writer rather than using the OpenEXR library, and this can lead to some differences in how it handles EXR files. For example, some of the newer features (such as HTJ2K compression) may not be supported. Also floating point may not be supported in all filters, so you should test your pipelines to ensure that they are working as expected. Things to watch out for include:

  • scale clamps floating point. Whatever float format it is given, scale limits the values to 0.0 - 1.0: a half-float EXR holding -2.0 to 300.0 comes out as 0.0 to 1.0, so every highlight above 1.0 is lost. Converting to 32-bit float first does not help. zscale keeps the full range for both half-float and 32-bit float (FFmpeg 6.1.6 to a 9.1 development build), so use it to resize.
  • From FFmpeg 8.0, converting half-float to 32-bit float clamps too. Half-float EXRs now decode as gbrpf16le (gbrpf32le up to 7.1), so -pix_fmt gbrpf32le or format=gbrpf32le goes through libswscale, with the same clamp. Use zscale,format=gbrpf32le when you need 32-bit float, and -pix_fmt gbrpf16le to read the true values. The ocio filter itself is fine with a float format (values kept on 8.1, 9.0.2 and a 9.1 development build), as long as you do not put format=gbrpf32le in front of it. See FFmpeg Version Changes.
  • While FFmpeg can write exr files, we would recommend using tools such as oiiotool that do use OpenEXR library to ensure that all features of the library are supported.

What happens to out-of-range values if you do not clamp

The format you give the OCIO filter decides whether out-of-range values reach the file. An integer format such as rgb48 clamps to 0.0 - 1.0 inside the filter. A float format such as gbrpf32le (or leaving format unset with a float source) keeps them, and zscale then writes them into the Y’CbCr as luma outside the 64-940 range (at 10-bit). It only clips at the ends of the code range, 0 and 1023. The encoder will not clamp them either: 0 to 1023 are all valid values in a 10-bit bitstream, and the 64-940 range is a signalling convention rather than something the codec enforces.

Grey float RGB converted to 10-bit limited range with zscale, then back to 16-bit RGB with zscale as a player would (FFmpeg 7.1 and 8.1):

RGB in -0.1 -0.05 0.0 0.5 1.0 1.05 1.1 1.5
10-bit Y’ 0 20 64 502 940 984 1023 1023
Back to 16-bit RGB 0 0 0 32767 65535 65535 65535 65535

Values below black and above white survive into the file but are clipped by the conversion back to RGB, so they are not recoverable in practice. Players that convert differently, or apps that show the raw Y’CbCr, may not treat them the same way. Unless you deliberately want to keep super-whites, set an integer format on the OCIO filter so the clamp happens in a known place.

Filter order: resizing before or after the OCIO filter

If you need to resize as well as color convert, the order matters for both correctness and speed.

Resizing first is faster

The OCIO filter is the expensive part of the chain, so resizing first means it processes fewer pixels. Converting a 1920x1080 ACES sequence through a display transform to 10-bit Y’CbCr, 20 frames, best of three runs:

Chain Time per frame
ocio then resize to 960x540 27.8 ms
resize to 960x540 then ocio 10.5 ms
ocio then resize to 1280x720 27.6 ms
resize to 1280x720 then ocio 15.4 ms

Resizing first is 1.8x to 2.6x faster, and the saving scales with how much you are reducing by, because the OCIO filter always runs at full resolution in the other ordering.

Resizing first also matches Nuke

Nuke resamples in the working space and applies the display transform afterwards. Comparing both orderings in FFmpeg against uncompressed Nuke renders of the same sequence, resize-first matches by roughly 12 dB more than ocio-first does. If your goal is to match a Nuke-generated reference, resize first.

But it has two requirements

Resizing before the OCIO filter must use zscale, not scale. As described above, scale clamps floating point to 0.0 - 1.0, so resizing scene-linear EXR data with it destroys every highlight before the display transform ever sees them.

The second requirement is FFmpeg 8.1 or newer with the OCIO filter’s format negotiation fix. On the 8.1 release the filter graph cannot resolve formats for this ordering and the command fails outright:

The following filters could not choose their formats: Parsed_ocio_1
Consider inserting the (a)format filter near their input or output.

Adding an explicit format= to the OCIO filter works around this on 8.1, since it is purely a negotiation failure:

-vf "zscale=w=1280:h=720:filter=lanczos,ocio=input=ACEScg:display=sRGB - Display:view=ACES 1.0 - SDR Video:format=gbrpf32le"

Builds carrying the negotiation rework (see below) handle it without the explicit format.

Resampling filter choice

Lanczos is the usual choice. Note that resampling scene-linear data rings against highlights before the transform compresses them — a frame with a scene-linear peak of 231.0 rings down to -5.4 in display-referred units after the transform. This is expected behaviour rather than a fault, but it makes the filter width worth thinking about: a 4-tap lanczos rings noticeably less than a 6-tap one.

If you are matching Nuke, its Lanczos4 and Lanczos6 are named by tap count and correspond to zscale’s param_a=2 and param_a=3 respectively. zscale’s default lanczos is param_a=3, so it matches Nuke’s Lanczos6. Note that FFmpeg’s help text describes param_a as “the number of filter taps”, but it is actually the lobe count, with taps being twice that.

Building ffmpeg with OCIO support

If you are already manually building ffmpeg, you can enable OCIO support by adding the following flag to the configure script:

--enable-libopencolorio

This does require opencolorio to be installed on the system, and be found by pkg-config.

If not, you may want to refer to the docker container build files in the docker directory. In particular the rocky-ffmpeg-8.1 directory. There is also a conan recipe in the conan directory that can be used to build ffmpeg with OCIO support on macOS, linux and windows.

We do also want to flag a patch that didn’t make it into the ffmpeg 8.1 release - https://code.ffmpeg.org/FFmpeg/FFmpeg/pulls/21799. This reworks how the OCIO filter negotiates pixel formats with the filters around it. On the 8.1 release the format parameter is applied too late in negotiation, so downstream filters such as zscale can be handed the wrong pixel format, and chains that put a resize before the OCIO filter fail to resolve formats at all:

The following filters could not choose their formats: Parsed_ocio_1

With the patch, those chains negotiate without needing an explicit format= to force the issue. Hopefully this will make it into the following release. The above build recipes do include this patch.

We have measured the difference between the 8.1 release and a development build carrying this rework, and the resize-before-OCIO chain goes from failing outright to working. Strictly speaking the two builds differ by more than this one patch, so we describe the fix as being in the development build rather than attributing it to the patch alone.

Timing Tests

For some simple timing tests, we are comparing oiiotool using –parallel-frames (meaning the initial conversion is run in as many threads as possible) and ffmpeg (both single threaded and with 4 threads). This is a 4 second 4k exr image sequence of 200 frames (sparks) and we are encoding to prores_videotoolbox 422 HQ on a M2 Macbook Pro. We picked this particular codec since its fast, and works at high bit-depths (10 and 12-bit).

Task Elapsed time Seconds Notes
oiiotool 101.46 Media conversion to PNG serially.
oiiotool with parallel-frames 44.91 Media conversion to PNG with –parallel-frames
basic ffmpeg 2.87 Just converting the resulting frames from PNG to a quicktime
oiiotool + ffmpeg 47.78 Combining parallel-frames and the ffmpeg generation
ffmpeg with 0 threads 19.58 This is the default option
ffmpeg with 1 threads 127.75 Single threaded.
ffmpeg with 2 threads 65.90
ffmpeg with 4 threads 33.95
ffmpeg with 6 threads 23.74
ffmpeg with 8 threads 37.75

We recommend leaving it with the default of 0 threads (i.e. don’t specify anything). It is worth noting that OCIO using the CPU is not super fast (although clearly faster than the alternative), we will explore using vulkan to accelerate this in the future.

Slate and burn-in generation

By adding OCIO to FFmpeg, we can generate slates and burn-ins in the correct colorspace without needing to create an intermediate file. This is critical for VFX pipelines where metadata must be overlaid on color-corrected plates.

For an extreme example of building a slate and burn-in, see the following example, which is generated using the prototype dailies tool ffmpeg-dailies.

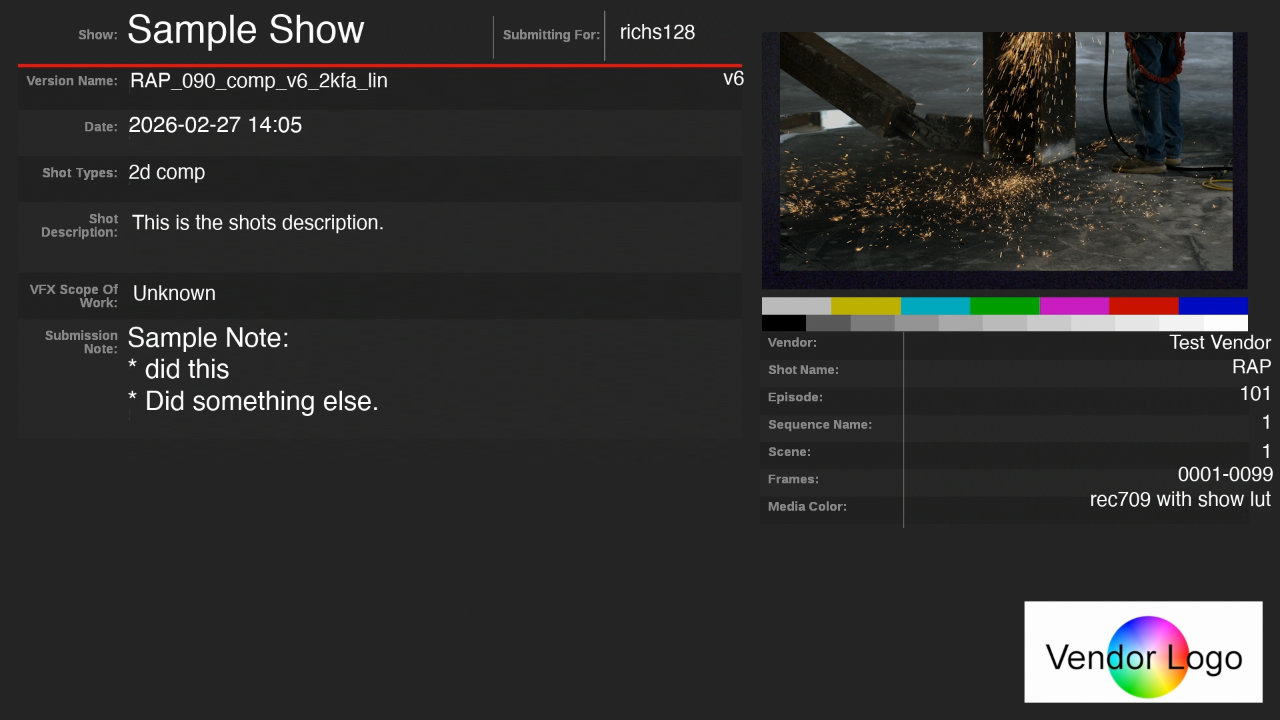

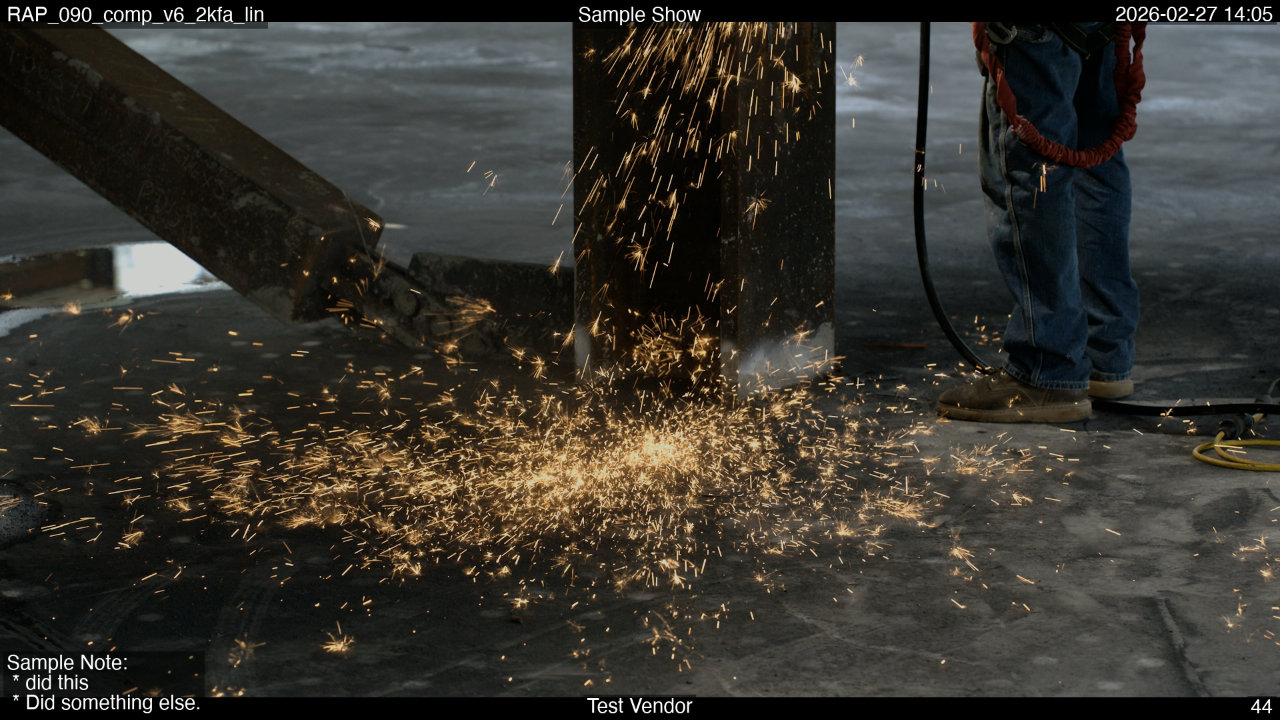

Example slate Example burn-ins
Example slate Example burn-ins

This stores the filter in a separate file, to make it more stable.

ffmpeg -y \
    -framerate 24 -start_number 1001 \
    -i tests/data/complex_paths/shots/SH010/v001/SH010_v001.%04d.exr \
    -i vfx-templates-blank-slate-0.0.6.jpg \
    -/filter_complex filterfile.txt \
    -map "[final_v]" \
    -c:v libx264 -crf 18 -preset slow -pix_fmt yuv420p10le \
    -r 24 \
    -metadata comment="Sample Note:
 * did this
 * Did something else." \
    -metadata artist="Test Vendor" \
    -metadata shot_types="2d comp" \
    -metadata submit_for="jsmith" \
    -metadata scope_of_work="Unknown" \
    -metadata shot_description="This is the shots description." \
    -metadata episode="101" \
    -metadata sequence_name="1" \
    -metadata scene="1" \
    -metadata media_color="rec709 with show lut" \
    -metadata title="Sample Show" \
    -metadata date="2026-02-27 14:05" \
    -metadata original_filename="SH010_v001" \
    -metadata shot="SH010" \
    -metadata version="v001" \
    -metadata frame_range="1001-1024" \
    -metadata source_filename="tests/data/complex_paths/shots/SH010/v001/SH010_v001.#.exr" \
    -metadata first_frame="1001" \
    -metadata last_frame="1024" \
    -metadata source_frame_rate="24" \
    -metadata slate_length="1" \
    -metadata display_type="sRGB - Display (ACES 1.0 - SDR Video)" \
    -metadata watermarking="True" \
    -metadata:s:v:0 reel_name="SH010_v001" \
    -timecode 00:00:41:16 \
    -movflags use_metadata_tags \
    -color_primaries bt709 \
    -color_trc iec61966-2-1 \
    -colorspace bt709 \
    test_output.mov

The filter graph works in 10-bit 4:4:4 Y’CbCr from the point where the slate and the burn-ins are drawn:

  • Each branch is converted with zscale before overlay and drawtext. The slate background is a JPEG, so zscale converts it from its own BT.601 full range tags; the OCIO output is RGB.
  • overlay is given format=yuv444p10. Its default is 8-bit 4:2:0, and because the slate and the video are joined with concat, FFmpeg then converted the whole graph, video included, to 8-bit 4:2:0 BT.601 full range with libswscale.
  • The resize and pad happen after the OCIO filter, on display-referred RGB, so scale is safe there and keeps force_original_aspect_ratio and pad. Resizing first would be faster (see Filter order), but needs zscale, which has neither.
  • A last zscale subsamples to 4:2:0 for the encoder, and setparams sets the primaries and transfer.

Measured on 9.0 with lossless H.264 in place of -crf 18: the main video matches the OCIO filter’s own RGB output exactly (0 code values, away from the burn-ins), tagged BT.709/sRGB limited range. The earlier version of this graph came out full range, with no primaries or transfer tags, and its luma was out by 3 code values on average even allowing for the range.

The filterfile.txt is as follows:

FFmpeg’s filtergraph script parser does not support # comments or line breaks inside a filter chain. The following example includes comments for documentation purposes; these must be removed in the actual file.

# Split source for thumbnail extraction
[0:v]split=2[main_v][thumb_stream];
# Prepare slate background: the JPEG to 10-bit 4:4:4 BT.709
[1:v]zscale=w=1920:h=1080:matrix=709:range=limited:filter=lanczos,format=yuv444p10le,setsar=1,trim=end_frame=1[slate_bg];
# Extract and process thumbnail (frame 12): OCIO, resize, then to 10-bit 4:4:4 BT.709
[thumb_stream]select='eq(n\,12)',
    ocio=config='../ffmpeg-ocio-test/sourcemedia/studio-config-v1.0.0_aces-v1.3_ocio-v2.1_ns.ocio':
    input='ACEScg':display='sRGB - Display':view='ACES 1.0 - SDR Video':format=rgb48,
    scale=681:383:force_original_aspect_ratio=decrease,format=gbrp16le,
    zscale=matrix=709:range=limited:filter=lanczos,format=yuv444p10le,
    trim=end_frame=1,setpts=PTS-STARTPTS[pip];

# Overlay thumbnail onto slate, keeping 10-bit 4:4:4
[slate_bg][pip]overlay=x=1170:y=48:format=yuv444p10[slate_vf];

# Draw metadata on slate
[slate_vf]drawtext=text='Sample Show':x=190:y=21:fontcolor=white:fontsize=58:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='Test Vendor':x=(1363+545-tw):y=502:fontcolor=white:fontsize=29:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='2026-02-27 14\:05':x=193:y=175:fontcolor=white:fontsize=33:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='Sample Note\:':x=191:y=490:fontcolor=white:fontsize=40:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text=' * did this':x=191:y=538:fontcolor=white:fontsize=40:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text=' * Did something else.':x=191:y=586:fontcolor=white:fontsize=40:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='SH010_v001':x=195:y=109:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='v001':x=(780+337-tw):y=106:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='1001-1024':x=(1364+547-tw):y=700:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='SH010':x=(1365+543-tw):y=539:fontcolor=white:fontsize=29:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='2d comp':x=196:y=253:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='101':x=(1364+546-tw):y=579:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='1':x=(1363+546-tw):y=622:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='1':x=(1362+547-tw):y=666:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='rec709 with show lut':x=(1331+576-tw):y=737:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='jsmith':x=930:y=36:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='Unknown':x=199:y=428:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc',
    drawtext=text='This is the shots description.':x=195:y=312:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc'[slate_out];

# Main video: OCIO, then scaling and padding, then to 10-bit 4:4:4 BT.709
[main_v]ocio=config='../ffmpeg-ocio-test/sourcemedia/studio-config-v1.0.0_aces-v1.3_ocio-v2.1_ns.ocio':
    input='ACEScg':display='sRGB - Display':view='ACES 1.0 - SDR Video':format=rgb48,
    scale=1920:1080:force_original_aspect_ratio=decrease,pad=1920:1080:(ow-iw)/2:(oh-ih)/2,setsar=1,format=gbrp16le,
    zscale=matrix=709:range=limited:filter=lanczos,format=yuv444p10le[v_step_1];

# Main video burn-ins
[v_step_1]drawtext=text='Sample Note':x=10:y=h-th-10:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc':box=1:boxcolor=black@0.5:boxborderw=5:start_number=1001,
    drawtext=text='Test Vendor':x=(w-tw)/2:y=h-th-10:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc':box=1:boxcolor=black@0.5:boxborderw=5:start_number=1001,
    drawtext=text='%{frame_num}':x=w-tw-10:y=h-th-10:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc':box=1:boxcolor=black@0.5:boxborderw=5:start_number=1001,
    drawtext=text='SH010_v001':x=10:y=10:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc':box=1:boxcolor=black@0.5:boxborderw=5:start_number=1001,
    drawtext=text='Sample Show':x=(w-tw)/2:y=10:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc':box=1:boxcolor=black@0.5:boxborderw=5:start_number=1001,
    drawtext=text='2026-02-27 14\:05':x=w-tw-10:y=10:fontcolor=white:fontsize=30:fontfile='/System/Library/Fonts/Helvetica.ttc':box=1:boxcolor=black@0.5:boxborderw=5:start_number=1001[video_out];

# Join slate and video, subsample to 4:2:0 and set the primaries and transfer
[slate_out][video_out]concat=n=2:v=1:a=0,
    zscale=filter=lanczos,format=yuv420p10le,
    setparams=color_primaries=bt709:color_trc=iec61966-2-1[final_v]

Copyright © 2022 ORI Contributors. Distributed under a CC BY 4.0 license.

This site uses Just the Docs, a documentation theme for Jekyll.
